WingLine L kit with bottom guide 12 kg right opening grey for comfort unit

SCM-HWLLKD12DGUC
WingLine L kit with bottom guide 12 kg right opening grey for comfort unit
SCM-HWLLKD12DGUC visual

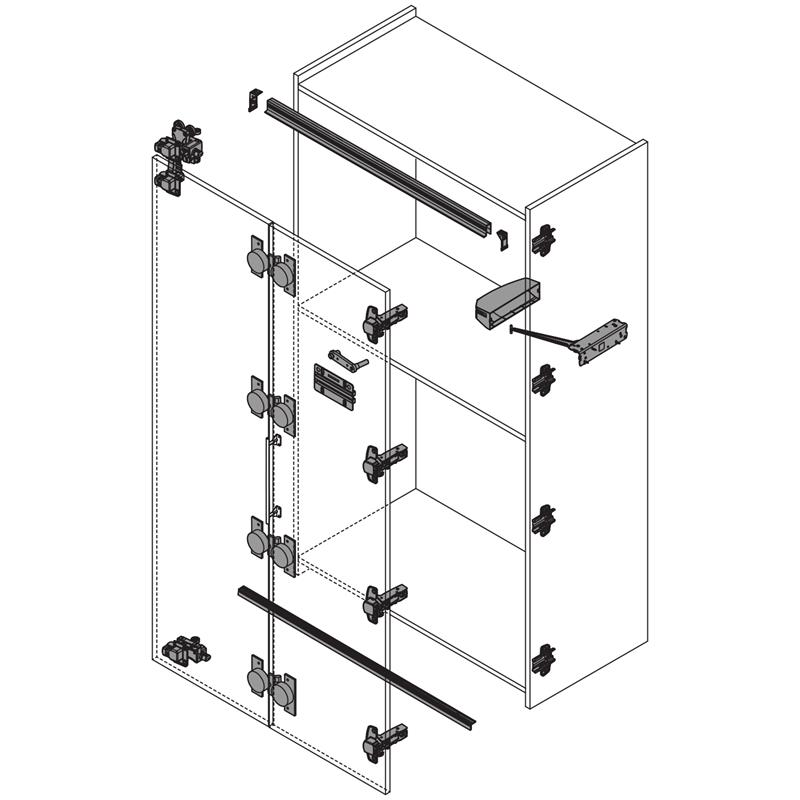

SCM-HWLLKD12DGUC assembly

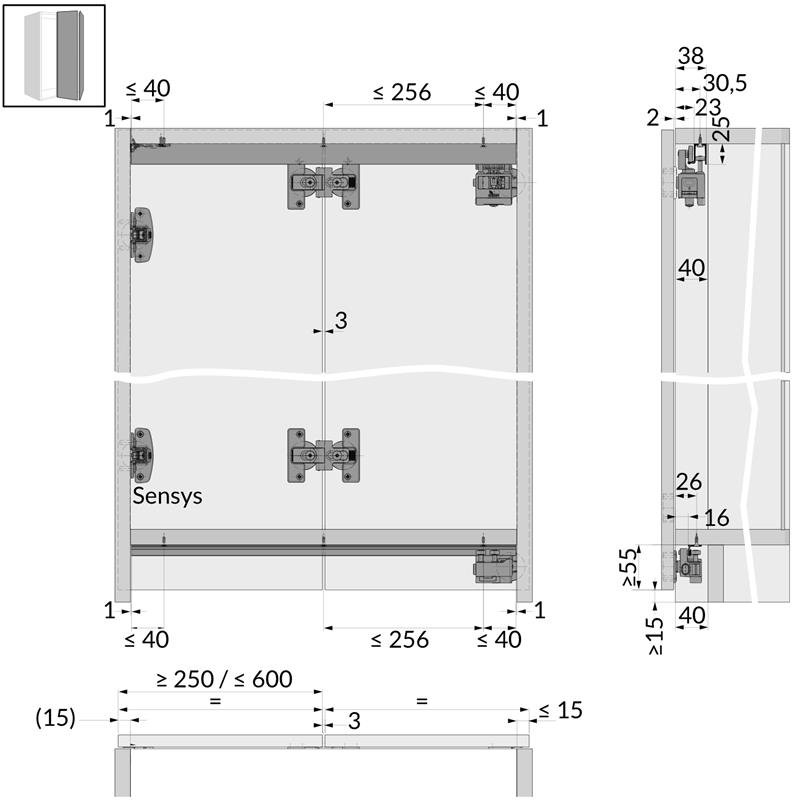

SCM-HWLLKD12DGUC spec 1

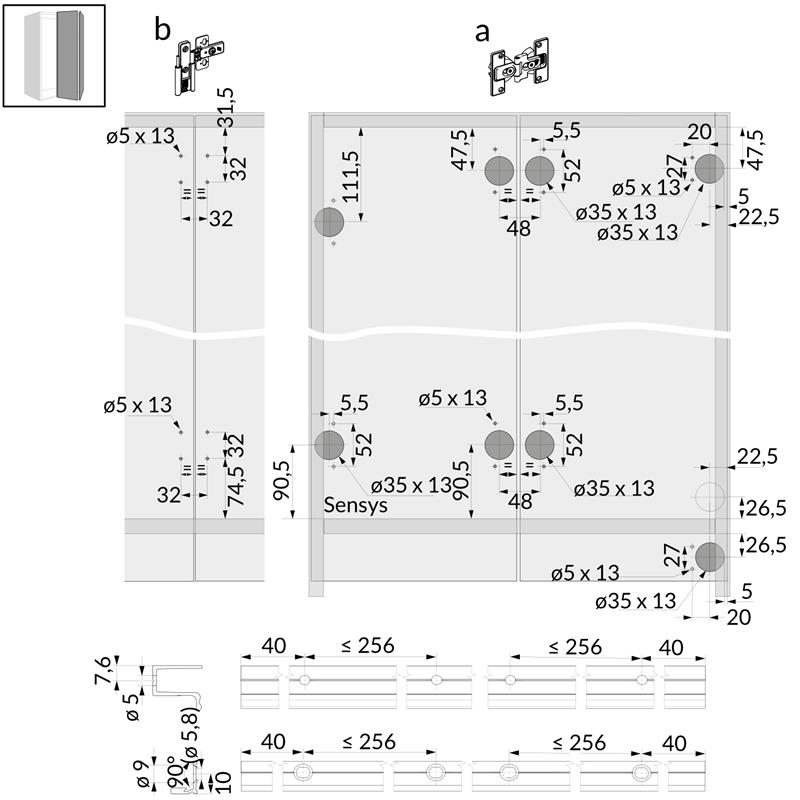

SCM-HWLLKD12DGUC spec 2

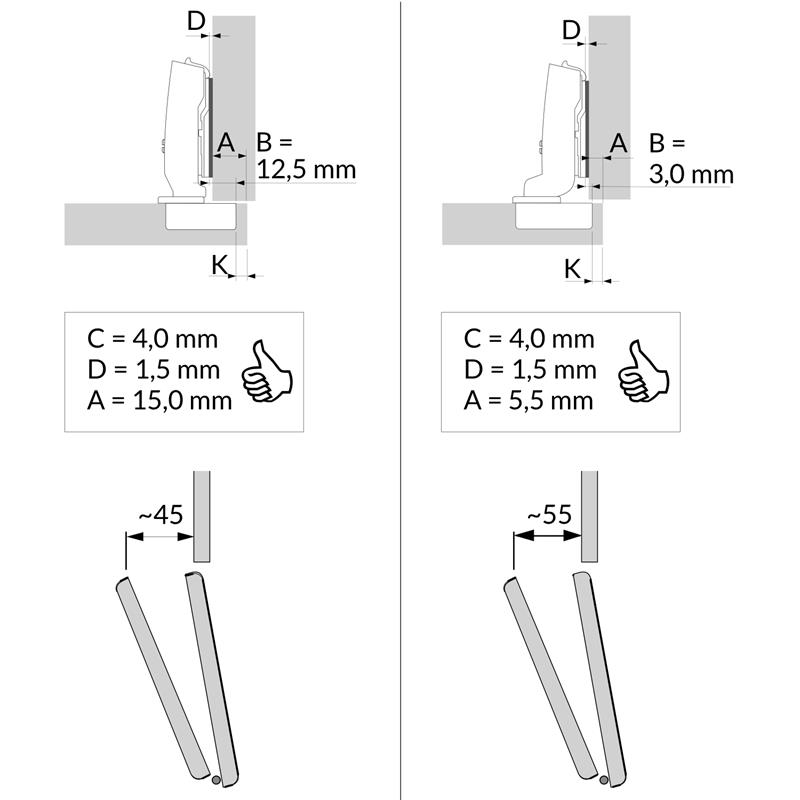

SCM-HWLLKD12DGUC spec 3

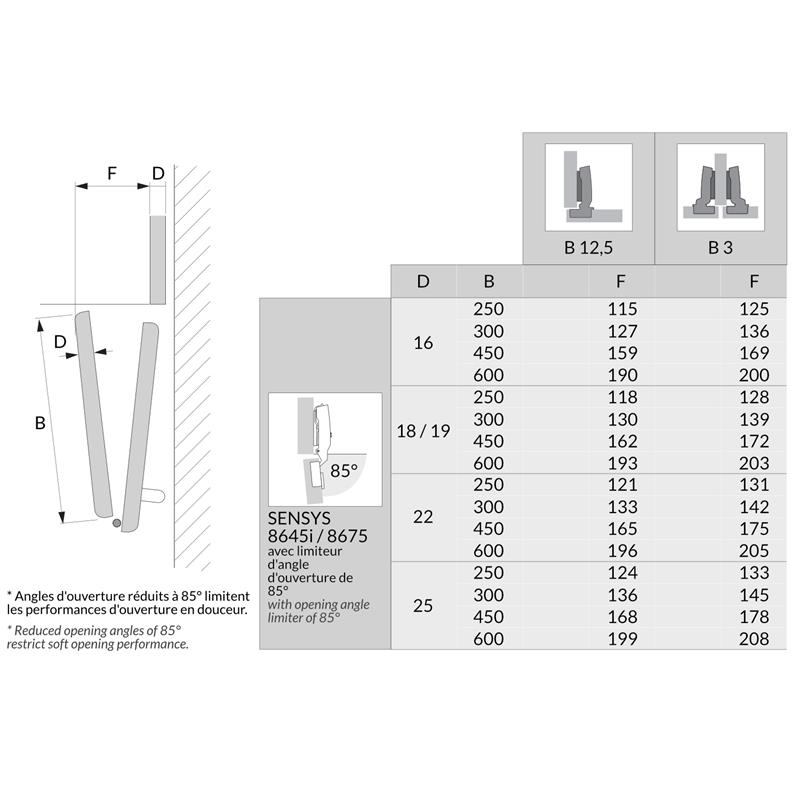

SCM-HWLLKD12DGUC 85°
SCM-HWLLKD12DGUC 90°

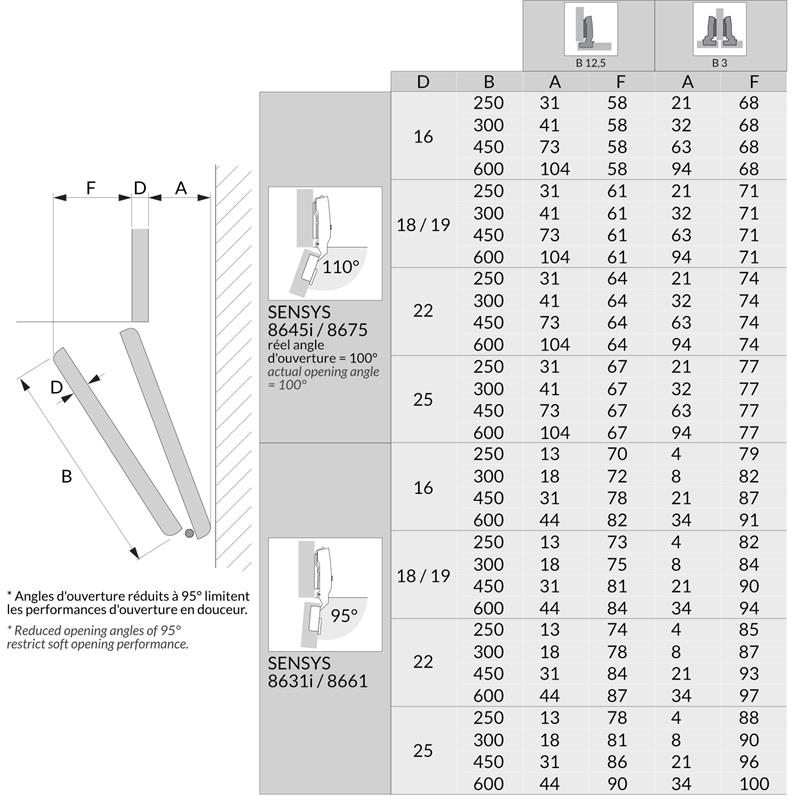

SCM-HWLLKD12DGUC 110°
SCM-HWLLKD12DGUC door height

The WingLine L system redefines the folding sliding door experience by combining contemporary design, innovation, and user comfort. Designed for modern living spaces, this premium system transforms every opening into a smooth and panoramic experience, providing full and instant access to the cabinet’s interior.

The WingLine L system brings a new dimension to storage solutions with its innovative folding door concept. Its key advantage lies in its panoramic opening, providing full and unobstructed access to the cabinet interior with one smooth and silent movement.

Thanks to its Push to Move and Pull to Move technologies, WingLine L delivers an intuitive, elegant, and comfortable user experience every day. Its sleek design integrates seamlessly into modern spaces while maximizing ergonomics and storage optimization.

Reliable, durable, and easy to integrate, this system is the ideal solution for wardrobes, kitchens, and custom cabinetry where performance, aesthetics, and user experience are essential.
• Motion type: Pull to move Silent / Push to move
• Opening side: right
• Door width: 250 to 600 mm (9 13/16" to 23 5/8")
• Door height: 500 to 2400 mm (19 11/16" to 94 1/2")
• Door thickness: 16 to 25 mm (5/8" to 1")
• Maximum weight per door: 12 kg (26.4 lb)
• Vertical partition setback: 40 mm (1 9/16")
• For full overlay or half overlay
• For use WITH comfort unit

Note:
• Guide tracks, center hinges, comfort units, hinges and mounting plates for connection to the cabinet side panel must be ordered separately.
• To be combined with Sensys 8675 hinges
