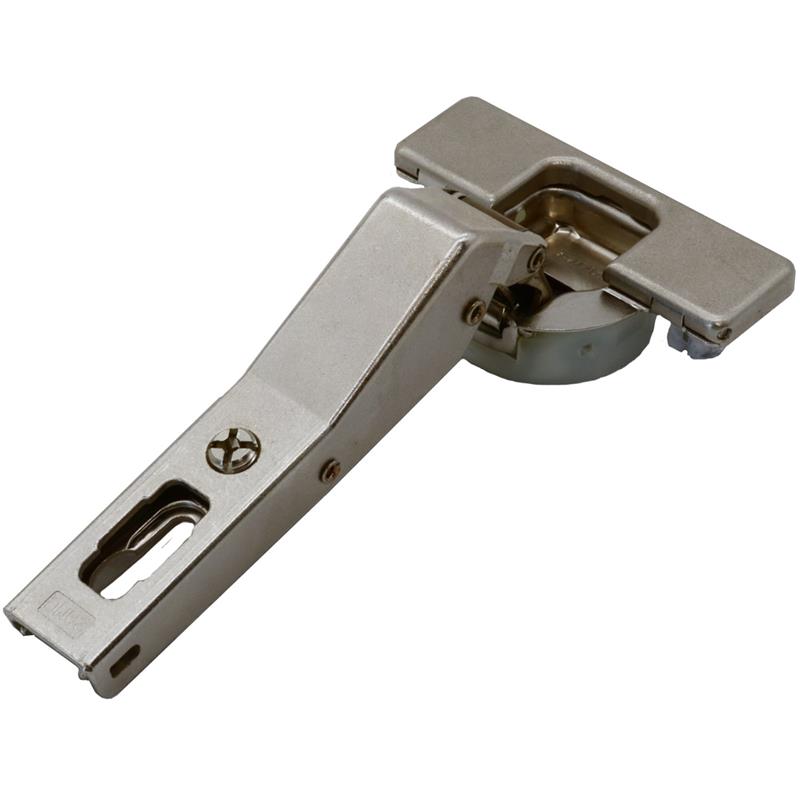

Hinge Salice Logica serie 100 45° with damper

PEN-S45-CLS

Silentia+ allows a perfect and constant closing of the door in any condition, use and application. This hinge includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.

The innovative soft-close technology guarantees excellent performances to the complete range of hinges.

• Application: 45° door
• Corner door
• Opening angle: 105°
• With damper
• With closing spring
• Fixing type: toolless
• Drilling pattern: 45 / 9,5 mm
• Cup drilling diameter: 35 mm
• Drilling depth: 12 mm
• Cup distance: 3 to 7 mm
• Maximum door thickness: 24 mm
• Vertical adjustment: +/- 2 mm
• Lateral adjustment: - 1,5 mm à + 4,5 mm
• Depth adjustment: - 0,5 mm à + 2,8 mm
• Finish : nickel-plated
