Essential elements of a well-built door, the Sensys series hinges from Hettich offer adaptive solutions for every type of furniture. Their reliable operation, durability, and high-quality manufacturing make them a safe choice for all kinds of applications or materials.
The Sensys range of hinges and mounting plates is among the most comprehensive available. Whether in terms of opening angle, finish, type of opening and closing, or door thickness, it can meet every need. Its three-dimensional adjustments ensure flawless alignment, and the option to add cover caps on the hinge cup gives it a clean look and a high-end aesthetic.

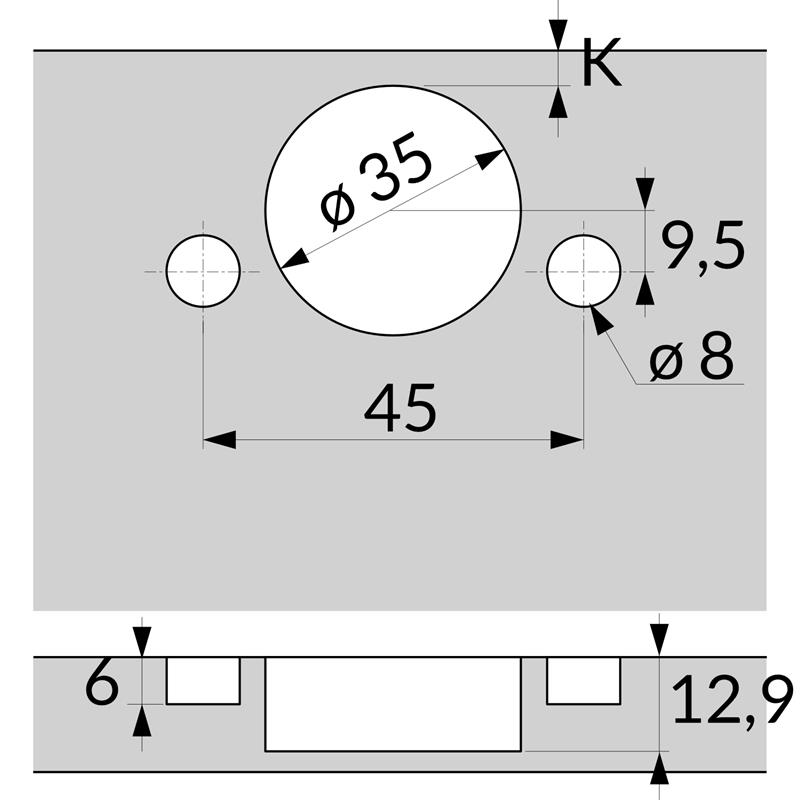

• Sensys 110° hinge• Without Silent System, with self closing feature (Sensys 8645)• Quality classification under EN 15570, Level 3• Opening angle 110 °• For door thickness 15-24 mm• Door mounting option overlay (B 12.5 mm)• TB - drilling pattern 45 x 9.5 mm• Cup depth 12.8 mm• Installation Fix fast assembly (TB 55)• Integrated overlay adjustment +2 mm / -2 mm• Integrated depth adjustment +3 mm / -2 mm• Height adjustment at mounting plate• steel nickel plated
