The Intermat hinge is a proven product, born from decades of experience, continuous development, and Hettich innovations. It is available for virtually every application and is designed for everyday use.
The Intermat hinge is very easy to install and adjust. It is designed to suit a variety of applications, with depth, height, and overlay adjustment options, ensuring precise closing and accurate alignment of the fronts.

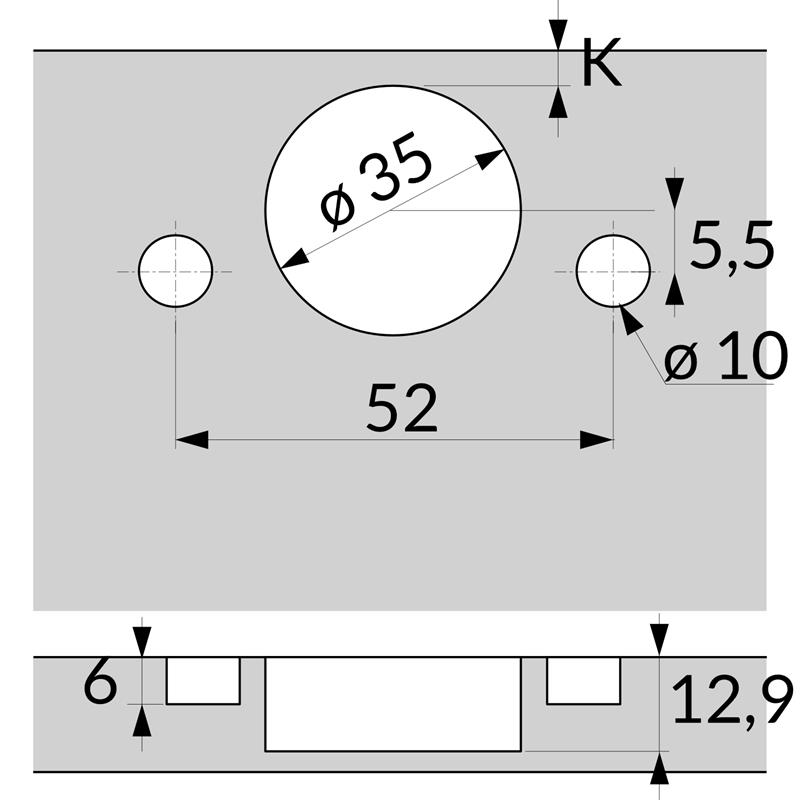

• Hinge for corner cabinet folding doors• Without self closing feature (Intermat 9930)• Quality classification under EN 15570, Level 2• Opening angle 50° / 65°• For door thickness 15 - 21 mm• Door mounting option overlay• THS - drilling pattern 52 x 5.5 mm, 48 x 6 mm• Cup depth 12.8 mm• Installation Fix fast assembly• Integrated diagonal adjustment +9.5 mm / -9.5 mm• Integrated overlay adjustment, see sketch• Integrated depth adjustment, see sketch• Height adjustment at mounting plate• steel / die-cast zinc nickel plated
