Intermat 9943 110° full overlay hinge 45 mm with dowels

Product code: PEN-HI110CG45

Intermat 9943 110° full overlay 45 mm, with dowels

The Intermat hinge is a proven product, born from decades of experience, continuous development, and Hettich innovations. It is available for virtually every application and is designed for everyday use.

• 110° Intermat hinge
• With self closing feature (Intermat 9943)
• Quality classification under EN 15570, Level 3
• Opening angle 110°
• For door thickness 15 - 25 mm
• Door mounting option overlay (B 12.5)
• TB - drilling pattern 45 x 9.5 mm
• Cup depth 11.6 mm
• Installation for pressing in
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +2.5 mm / -1.5 mm

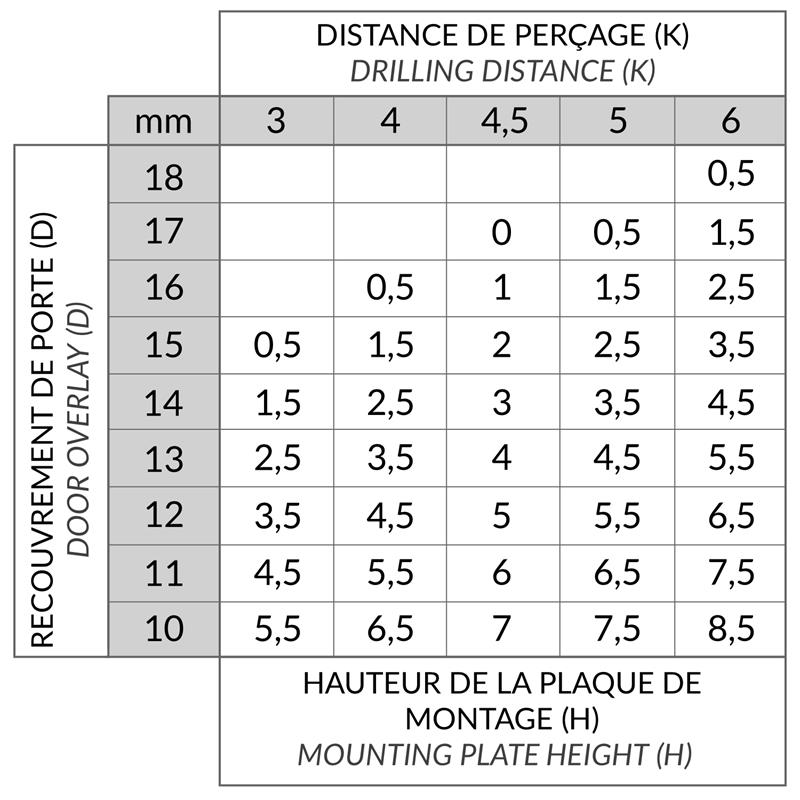

• Height adjustment at mounting plate
• steel nickel plated

The Intermat hinge is very easy to install and adjust. It is designed to suit a variety of applications, with depth, height, and overlay adjustment options, ensuring precise closing and accurate alignment of the fronts.
