Grass Tiomos 110° M9 hinge wood screw fixing with damper

PEN-GTM9-CBS
Grass Tiomos 110° M9 hinge wood screw fixing with damper

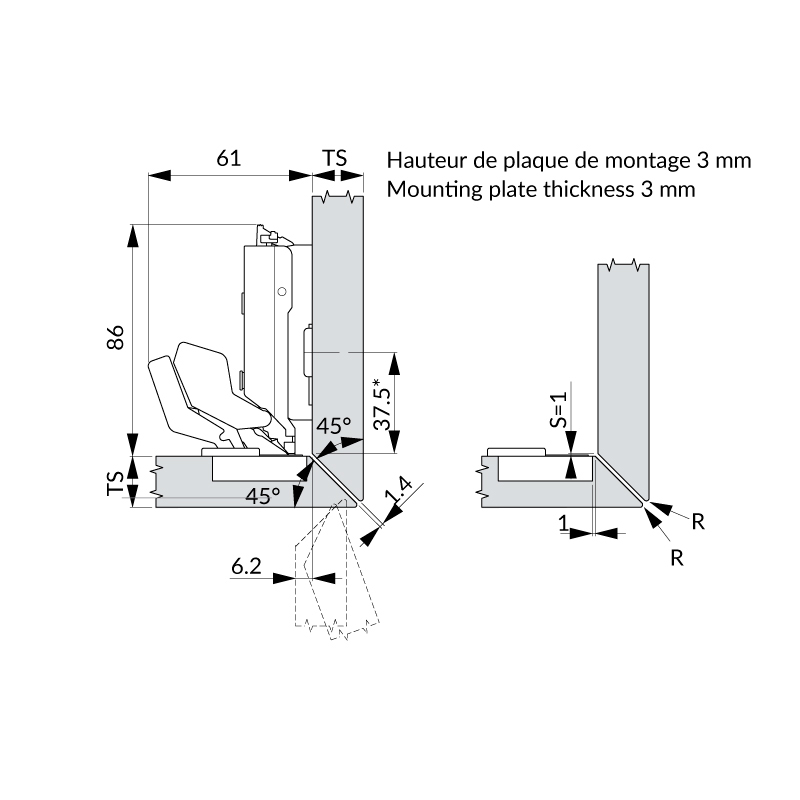

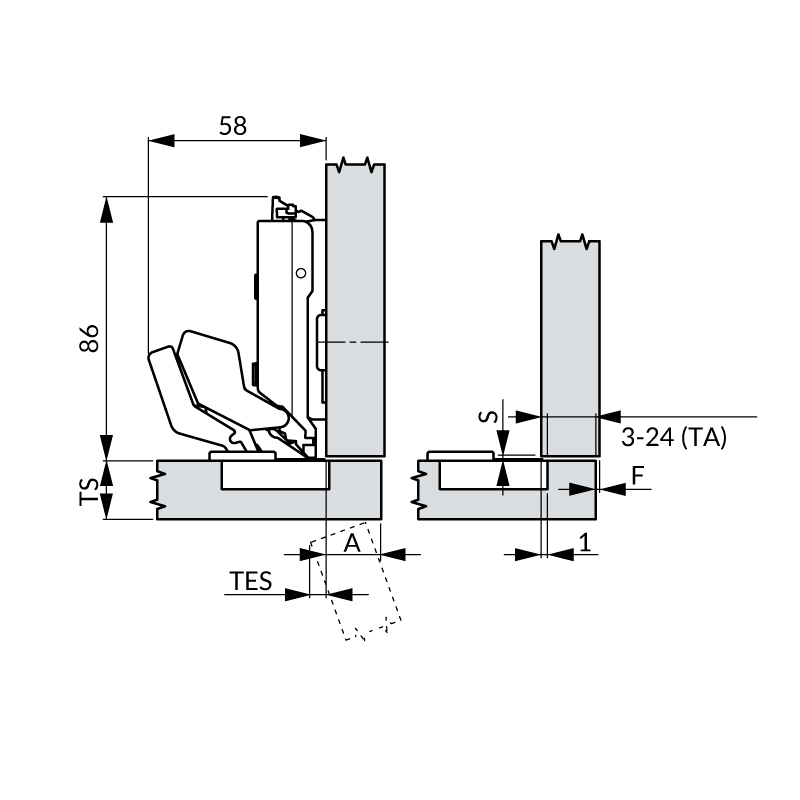

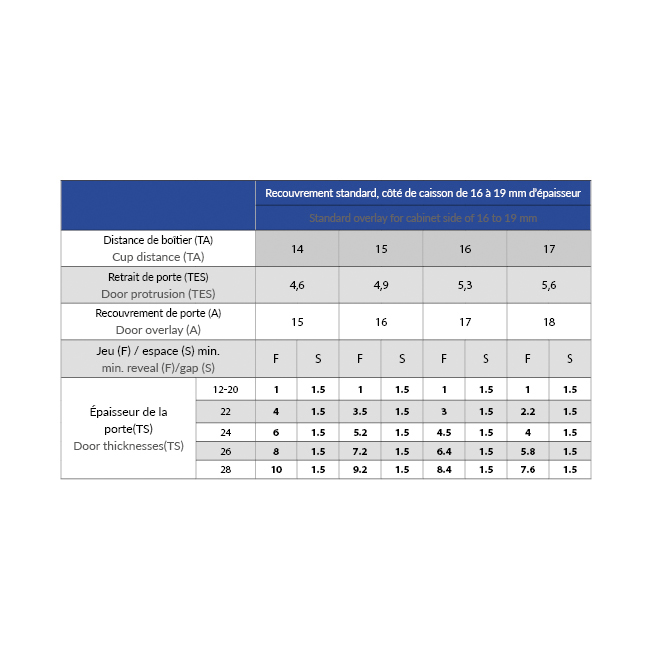

Technical data
Application
Technical data
Technical data
Technical data

Tiomos is product line of hinges offering more design freedom in furniture construction. The system provides a stable connection thanks to an increased support surface and offers the same appearance with or without Soft-close. In addition, to the soft-closing and self-closing, the Tiomos line offers an automatic opening mechanism.

One of the outstanding features of this system is that the soft-close mechanism is gradually adjustable. This technology is completely concealed within the hinge arm.
• Special application • Opening angle: 110° • Integrated adjustable damper • With closing spring • Fixing type: wood screws • Drilling pattern: 48 / 9 mm • Cup drilling diameter: 35 mm • Drilling depth: 9.2 mm • Cup distance: 3 to 24 mm • Maximum door thickness: 28 mm • Vertical adjustment: +/- 2 mm • Lateral adjustment: +/- 2 mm • Depth adjustment: +3 / -2 mm • Finish : nickel-plated
