Dimmable power supply 12V and 24V 30W

LUM-TRA122430

Toolbox

These transformers provide a versatile solution by integrating both 12 V and 24 V outputs into a single transformer. This design allows multiple types of lighting to be powered without the need for separate power supplies, simplifying both planning and installation.

• Power: 30W
• Input Voltage: 100-277 Vac
• Output Voltage: 12V - 24V
• Pre-wired for easy installation (low voltage)
• Dimensions: 160 mm X 58 mm X 20 mm

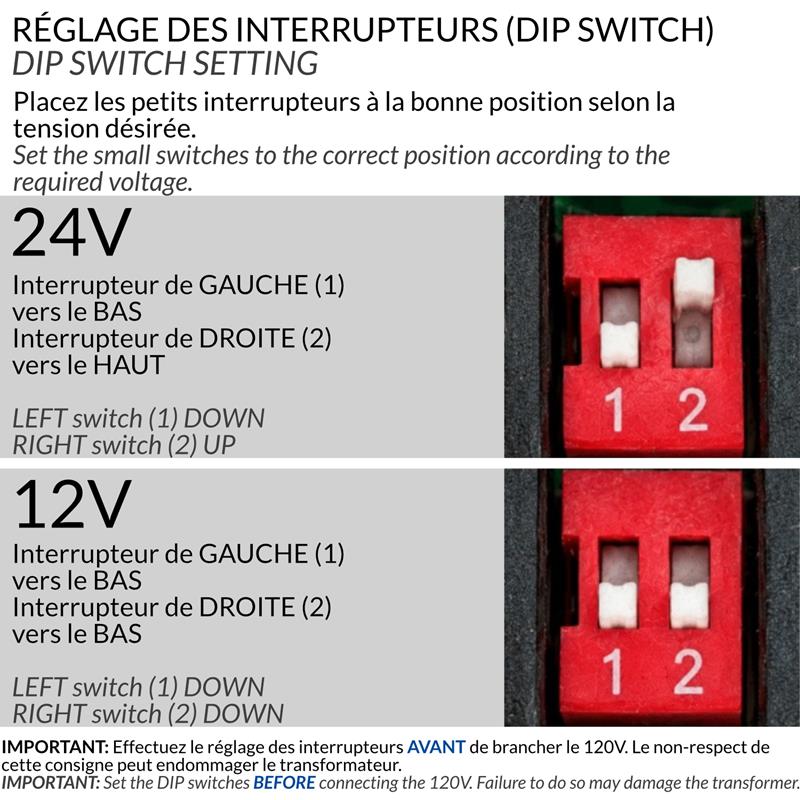

IMPORTANT: Always set the DIP switches BEFORE connecting the 120V. Failure to do so may damage the transformer.

This dimmable power supply is compatible with all our flexible LED strips and Mimosa recessed lights.
