Quadro YOU slides 30 kg 400 mm Silent System

Product code: KT-COU-HAYQ30400

Quadro You slide 30 kg 400 mm Silent System

Toolbox

Hettich’s Quadro is an undermount slide designed to ensure smooth and silent movement while providing excellent vertical and lateral stability. It is available in multiple configurations, offering a variety of functions and efficient solutions to serve different market segments with ease.

• Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches
• Integrated «Silent System»
• Tool-less height adjustment up to + 3 mm
• Suitable for drawers with a side profile thickness of up to 16 mm
• Load capacity to EN 15338, Level 3
• Galvanised steel

Advice:

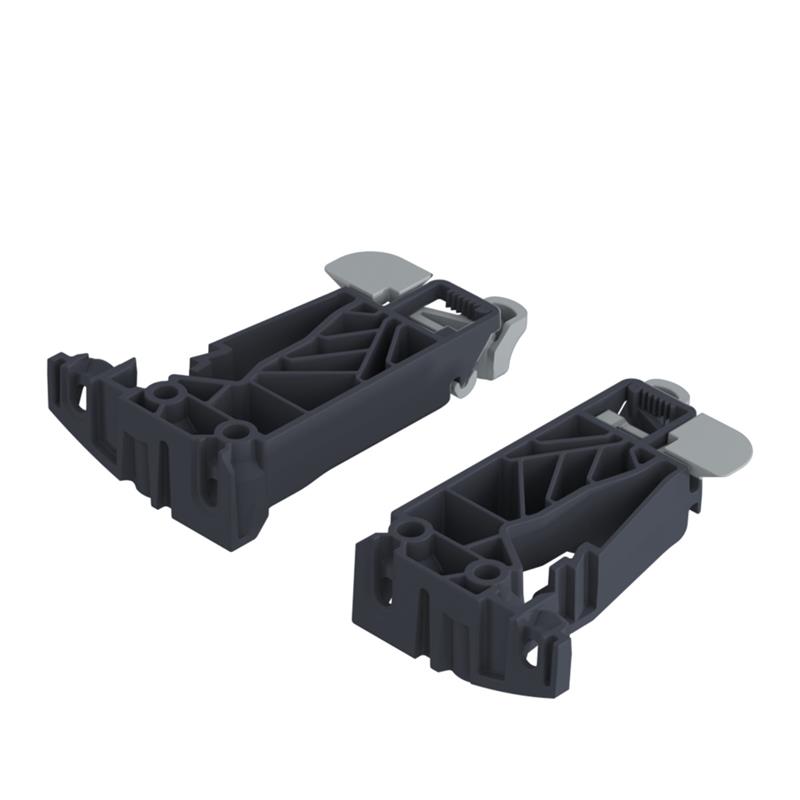

• Brackets must be ordered separately
• Push to open Silent and synchronization rod must be ordered separately

• Sliding shelf brackets must be ordered separately

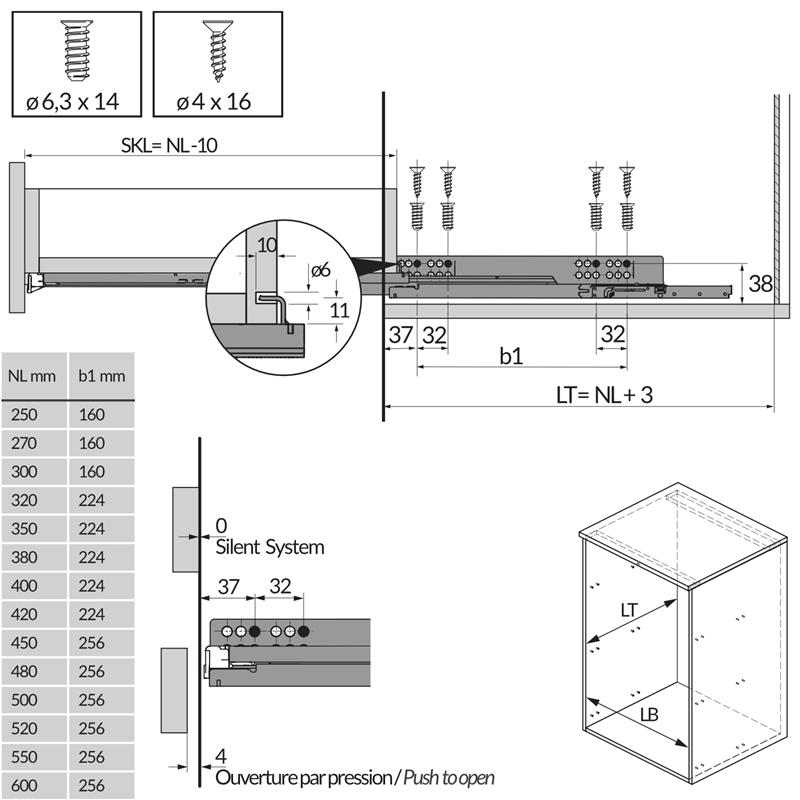

Using the sliding shelf brackets, reduce the drawer length by 10 mm (NL - 20 mm)

AvanTech YOU assembly video

Highly versatile, the Quadro slide is available in several versions: for InnoTech Atira and AvanTech YOU drawers, as well as for standard drawers made of melamine or other materials. It also comes in full-extension or partial-extension models, with different load capacities, and in versions with soft-closing or push-to-open functionality.
