Lateral opening system LIN-X600

BRA-SULA600
Lateral opening system LIN-X600
Technical
Technical
Application

The lateral opening door systems represent a new innovant movement type that can adapt itself to many applications like the kitchen (for upper and lower cabinets), the bathroom (for vanity furnitures), the living room (to hide a TV), or even for the wardrobe... In order to create amazing opening sets, it is possible to associate many of those systems.

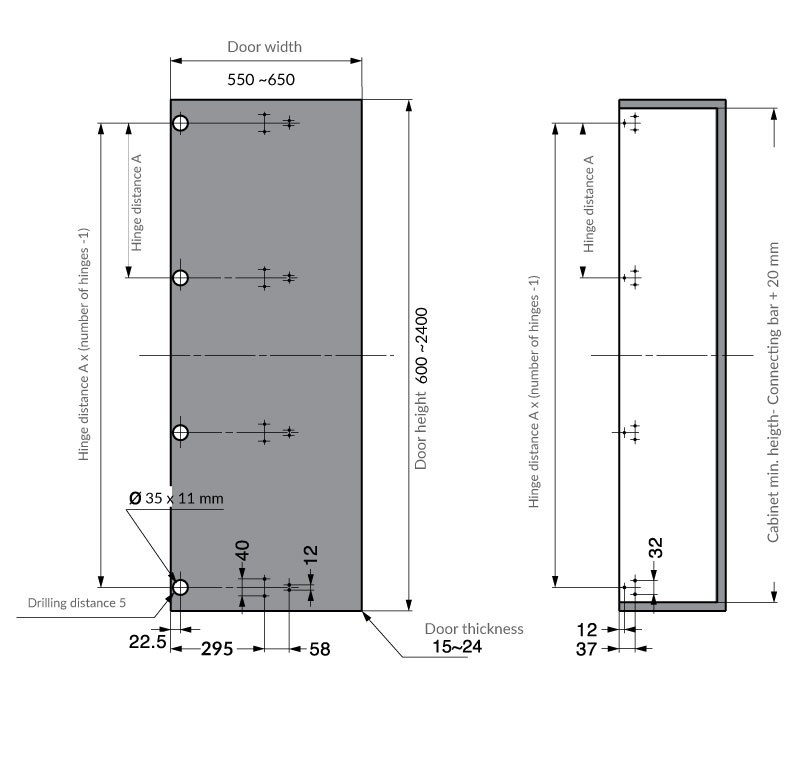

• Full access of the caisson • Soft close • 4 dimensions adjustments • Mounting on the side • Synchronization bar • Caisson interior width: 550 to 650 mm • Caisson interior height: 600 to 900 mm • Maximum door thickness: 15 to 24 mm • Maximum door overlay: 19 mm • Maximum door weight: 9 kg • Interior space congestion depth: 78 mm • Lateral clearing on the opening: 584 mm • Vertical clearing on the opening: 50 mm + door thickness
The main advantage of this type of product is the low lateral space congestion on the opening when compared with the rotation system. Besides its simplicity and its easy assembly, those systems stay flexible and versatile to be adapt on different type of furnitures.
