Aileron door lift heavy duty

BRA-ARN3HS

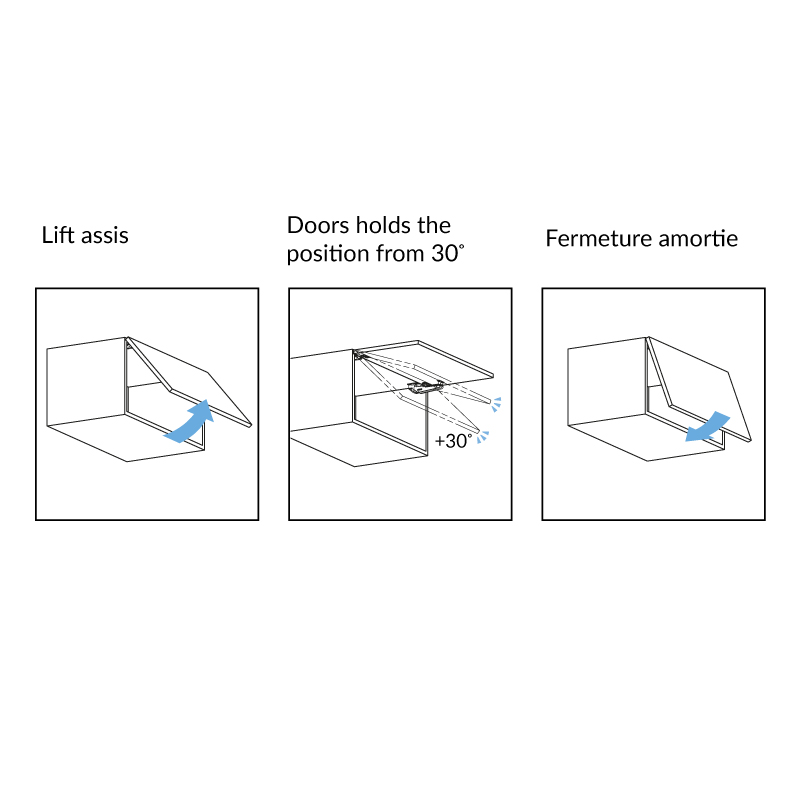

This lift-assist lid stay is perfect for upward opening motion. Its soft down stay and free-stop makes it a user-friendly.

The elegant Aileron system is sophisticated by its beautiful functionality and minimum required hardware components. It creates a continuous door movements with adjustable closing speed.
• Opening angle: 95° • Adjustable soft-closing speed • Adjustable opening and hovering forces • Drilling pattern: 45 / 9.5 mm • Door height: 200 to 606 mm (7-7/8" to 23-7/8") • Door thickness: 15 to 22 mm (9/16" to 7/8") • Torque tension kg-cm: 61.2 to 81.6 (53.1 to 70.8 lbs-in) Hinges included Torque calculation (lbs-inch) Door height (inches) x 0.5 x weight (lbs).
