MultiClip 2

BOI-HMLTC2
Boitier MultiClip 2 (BT/BX = 200 UNI)

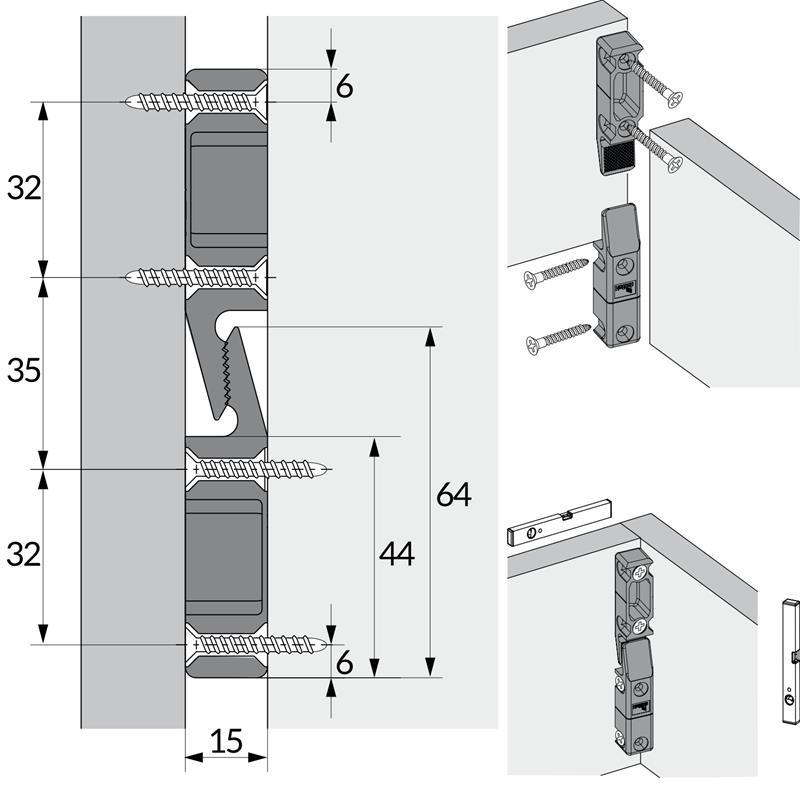

BOI-HMLTC2 spec 1

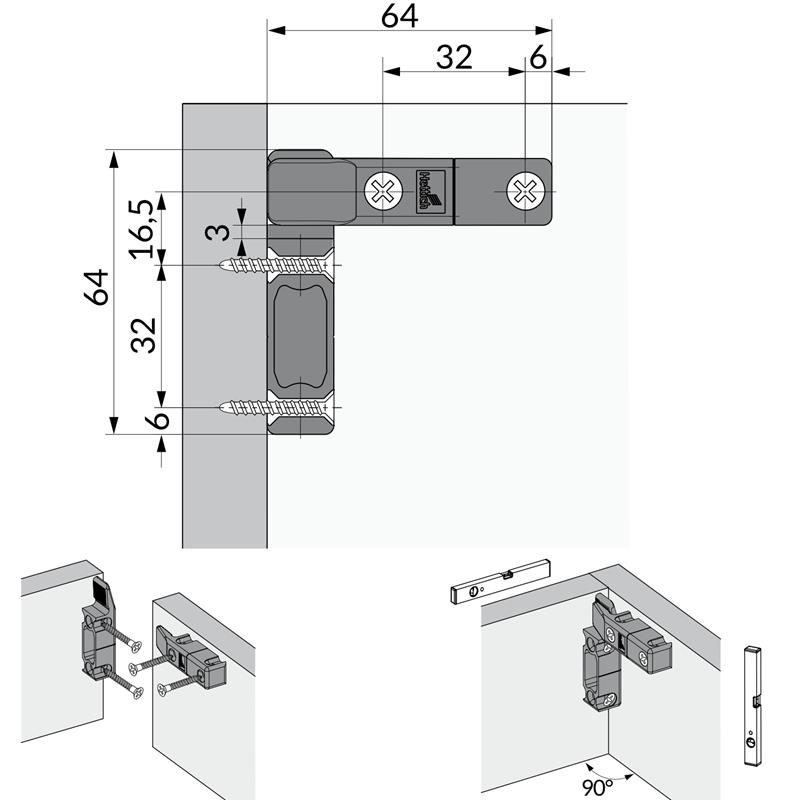

BOI-HMLTC2 spec 2

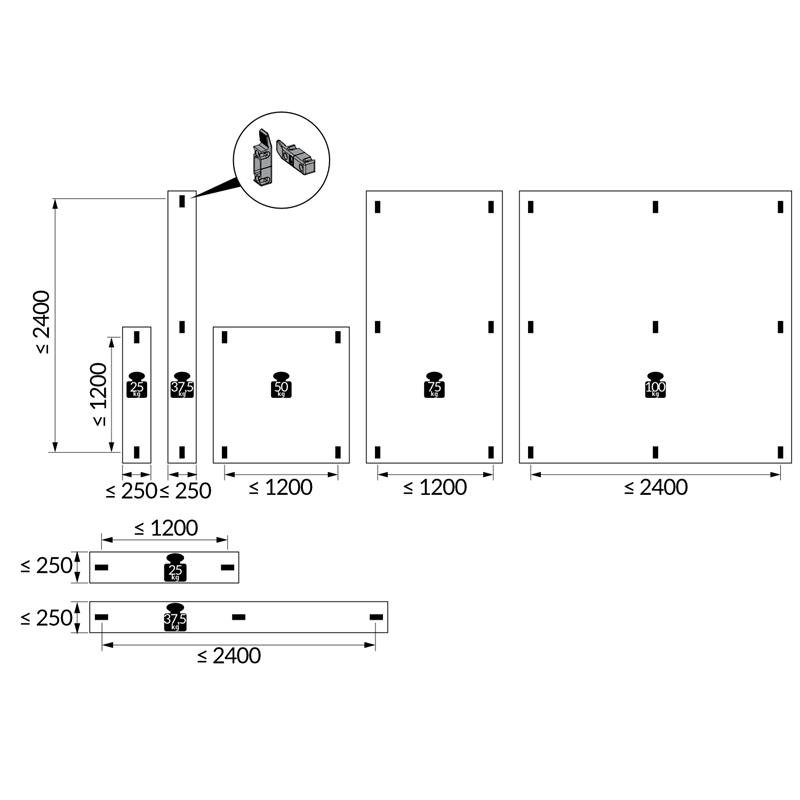

BOI-HMLTC2 spec 3

The MultiClip 2 from Hettich is a versatile fixing fitting designed for the assembly and suspension of panels, claddings, partitions, and fronts in interior fit-out projects or serial production. This universal connector, made of robust black plastic, can be mounted both parallel and at right angles, and adapts to a wide range of configurations thanks to its variable screw-in positions and tolerance compensation. Capable of supporting loads according to installation guidelines, the MultiClip 2 simplifies planning and installation processes.

The MultiClip 2 offers clear functional and economic advantages for cabinetmakers and manufacturers: a single fitting for a wide range of applications reduces inventory requirements, while providing secure and adjustable installation thanks to spring-loaded retaining tabs and stop surfaces that ensure reliable fixation of suspended components. Its flexible screw-in options (from the top, front, or side) allow for fast and precise installation, even in complex configurations, improving on-site efficiency and minimizing production costs.

• 200 units per box
• MultiClip can be used in many different applications
• For wall panelling, room dividers, cladding pillars, fascias and claddings of all types
• In all applications, the fitting can be screw mounted either parallel or at right angles to the fascia or cladding component
• If it is necessary to slide the clip connectors on from the front, one of the fittings is screw mounted at an angle of 90°
• Whether for interior fittings, contract work or volume production, this fitting is a cost saver in many applications
• Only 1 fitting component for all types of application
• The clip connector components provide a secure hold with spring loaded flexible clamps and serrated surfaces, load capacity as given in the installation instructions
• Variable screw on positions permit attachment from above, from the front, from the side as well as flush
• Compensation for mounting tolerances
• Clip connectors can be adjusted for perfect alignment
• Plastic, black

Advice:
• Applications are not permissible in which components are only supported by clip connection. The MultiClip must be mounted to provide a positively locked clip connection.
