AvanTech YOU front fixing brackets for customisable inset drawer H187 anthracite

ATT-HAYGIP187
Attaches de façade tiroir intérieur personnalisable anthracite AvanTech You H187

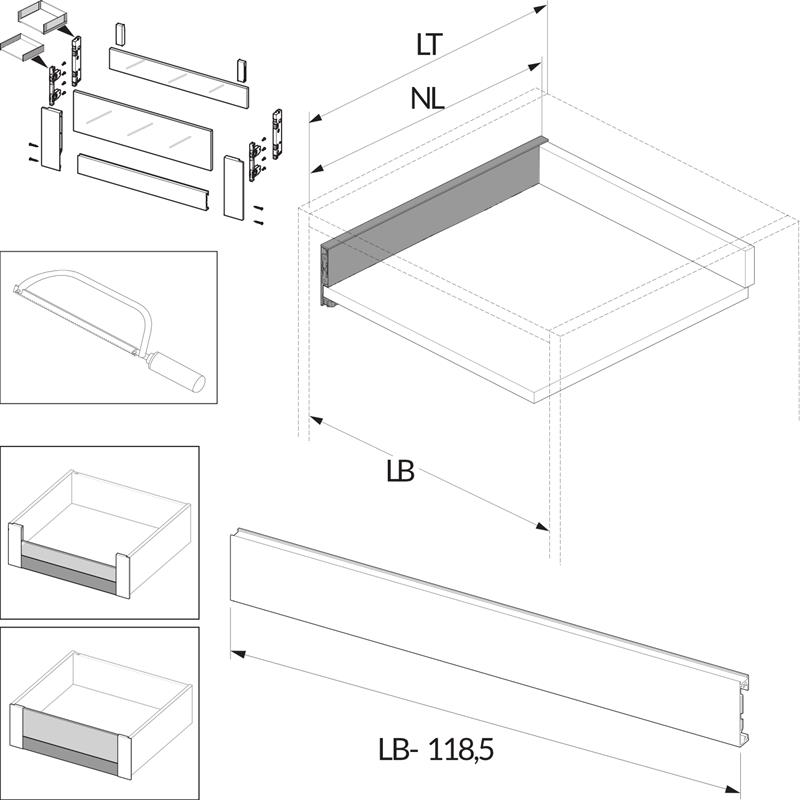

ATT-HAYGIP187 spec 1
ATT-HAYGIP187 spec 2

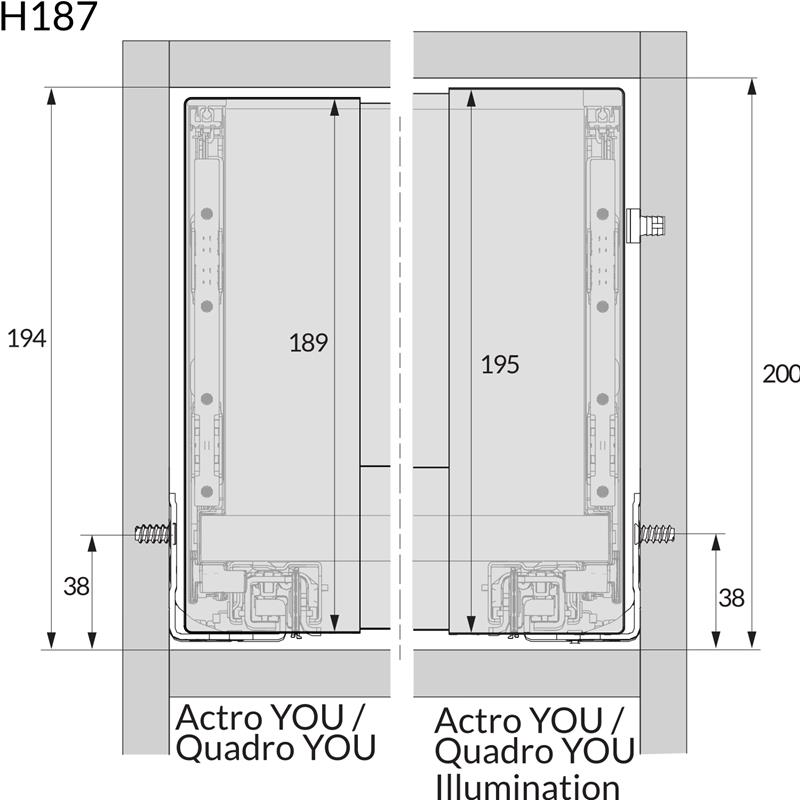

ATT-HAYGIP187 spec 3

AvanTech YOU by Hettich is a premium drawer system that combines sleek design, technical performance, and exceptional personalization. With its ultra-slim side panels and no visible hardware, it delivers a clean, modern look that elevates any furniture piece. The system offers wide creative freedom thanks to interchangeable decorative elements such as glass inlays or designer profiles. Built on a versatile platform concept, it integrates easily into manufacturing processes while offering smooth, durable slides for long-lasting performance. AvanTech YOU is the ideal solution for manufacturers and designers aiming to create elegant, customized, and highly functional cabinetry.

The AvanTech YOU drawer sides have a thickness of 13 mm and feature straight lines with a sleek, minimalist aesthetic. They are compatible with the Actro YOU and Quadro YOU soft-closing runners and are available in 5 heights: 77–101–139–187–251 mm. They are equipped with 3D adjustment for perfect alignment of drawer fronts.

• For combining with 10 mm glass inlay or any chosen material
• Powder coated steel

Set comprises:
• 1 connector for customisable internal front panel, left and right
• 1 drawer front connector for drawer side profile, left and right
• 2 spacer elements for low application
• 2 stabilisers for internal front panel
• Fixing material

Advice:
• Support profile for customisable internal front panel must be ordered separately
